Electronic System Architecture
Manufacturing & Production Support
Electronic System Architecture
- Requirements capture and technical specification definition
- Stack-up architecture and layer planning
- Component selection and lifecycle strategy
- Mixed-signal system architecture design
- Interface and power domain planning
PCB Layout & Routing
Manufacturing & Production Support
Electronic System Architecture

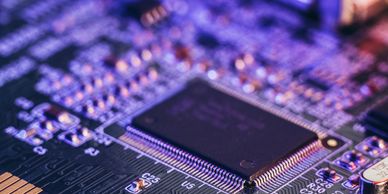

- Multilayer PCB design (4+ layers)
- Controlled impedance routing

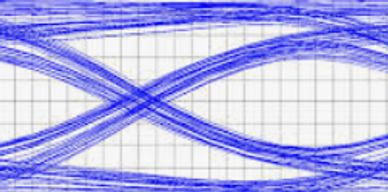

- Signal integrity-driven layout
- Power integrity and return path optimisation
- EMC-aware component placement
- DFM-driven layout execution
- Complete fabrication documentation (Gerber, ODB++, IPC-2581)
Manufacturing & Production Support
Manufacturing & Production Support
Manufacturing & Production Support
- Fabrication and PCBA documentation packages
- Design for Manufacture (DFM) reviews
- Liaison with fabrication and assembly partners
- Prototype build coordination
- Production transition and engineering change management
