DI/OT System Board

Overview:

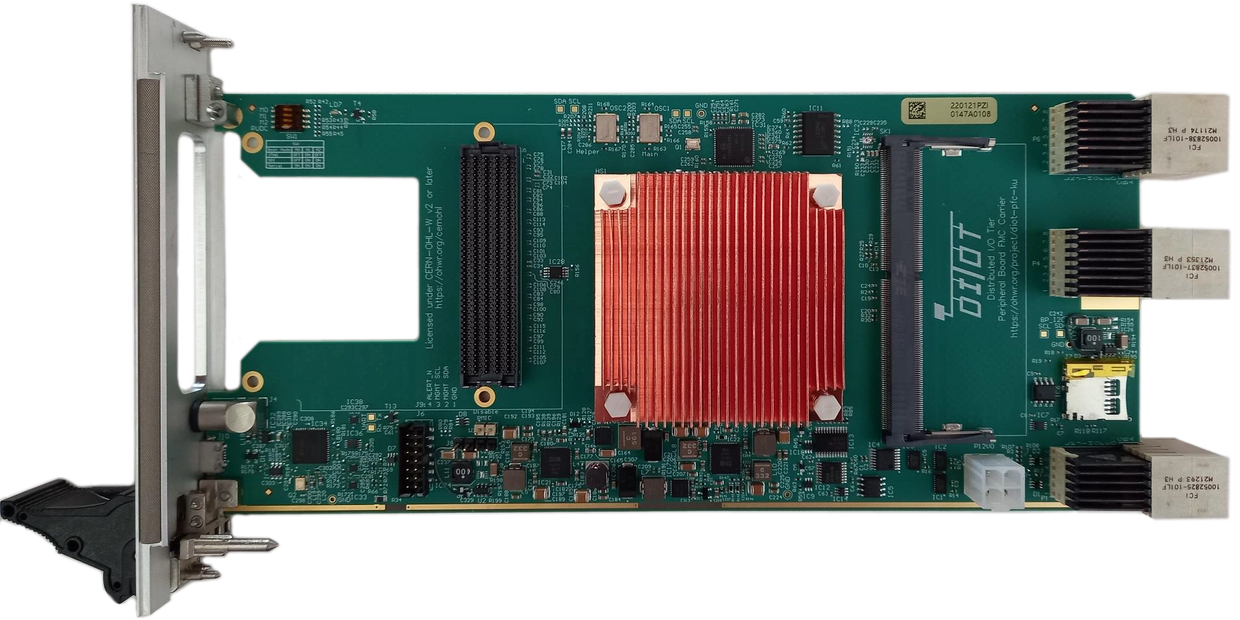

The DI/OT Kintex UltraScale Peripheral Board FMC Carrier is a high-performance interface and expansion platform designed for distributed I/O systems. Built around Xilinx Kintex UltraScale FPGA technology, it enables flexible integration of FMC mezzanine modules for data processing, storage, and communication.
The board is designed to operate within DI/OT architectures, supporting high-speed communication via the backplane and providing a scalable solution for advanced control and data acquisition systems.

Main Features:

• Xilinx Kintex UltraScale FPGA (XCKU035-1FFVA1156C)
• SODIMM DDR4 slot
• NOR Flash for storing FPGA bitstream
• On-board temperature sensors
• Programmable SI5341 clock generator
• 2 multi purpose LEMO I/Os
• FMC slot with high pin count (HPC) connector
  • Vadj 1.8V
  • LA, HA, HB banks connected to FPGA I/Os
  • 10 MGT Tx/Rx lanes connected to FPGA GTH
• DI/OT backplane connectors including
  • 16 LVDS lanes
  • 1 MGT lane
  • Low skew clock distribution from the System Board
  • Identification I2C bus
  • P4 RTM connector
