DI/OT System Board

Overview:

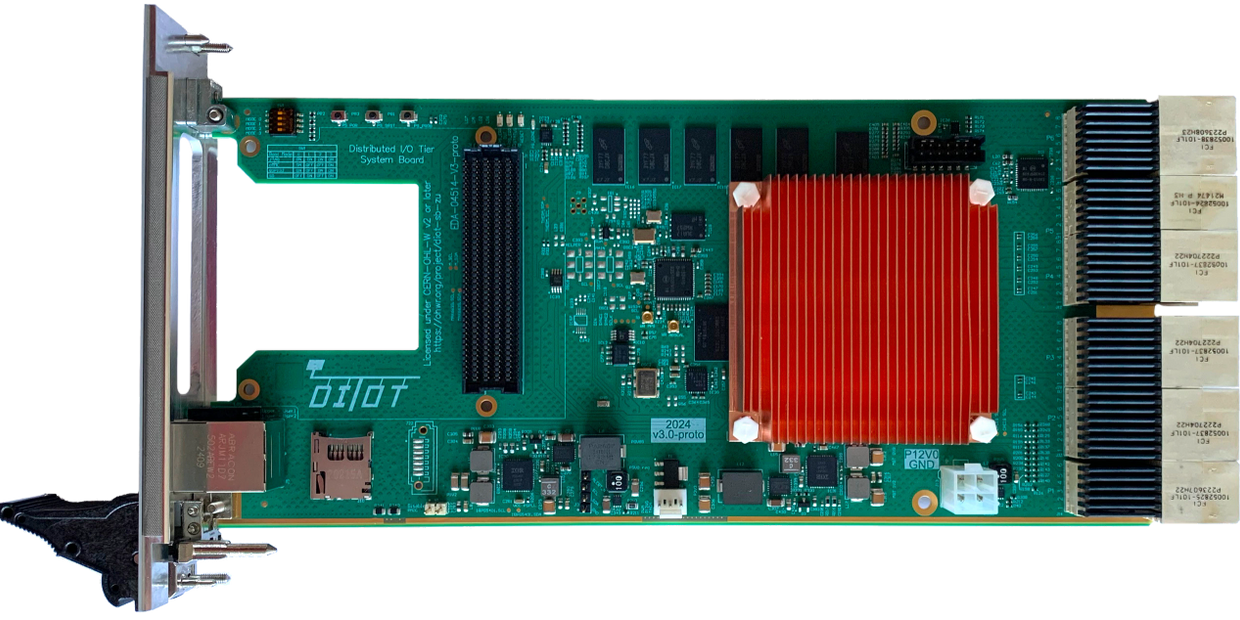

The DI/OT Zynq UltraScale+ System Board is a high-performance control and communication platform designed for advanced distributed I/O systems. Built around the Xilinx Zynq UltraScale+ MPSoC, it combines powerful processing and FPGA capabilities within a compact and scalable architecture.
The system supports precise synchronisation using White Rabbit technology and enables communication with multiple peripheral boards and higher-level control systems. It is engineered for use in demanding environments such as scientific research, industrial control, and high-performance embedded applications.

Main Features:

• Xilinx Zynq UltraScale+ MPSoC (XCZU17EG-1FFVC1760E)
• 8GB DDR4 memory with ECC for Processing System (ARM processor)
• 2GB DDR4 memory for FPGA Programmable Logic
• 8GB eMMC and 128MB QSPI Flash
• MicroSD card slot
• RJ-45 for 1Gb Ethernet
• FMC slot with high pin count (HPC) connector
  • Vadj 1.8V
  • LA bank connected to FPGA (HA, HB banks not available)
  • 8 MGT Tx/Rx lanes connected to FPGA GTH
• DI/OT backplane connectors
  • 287 FPGA I/Os
  • 8 MGTs (1 per Peripheral Slot)
  • Low skew clock distribution from programmable Si5341 generator
  • DI/OT crate control/monitoring I/Os
