AMC FMC Carrier

Overview:

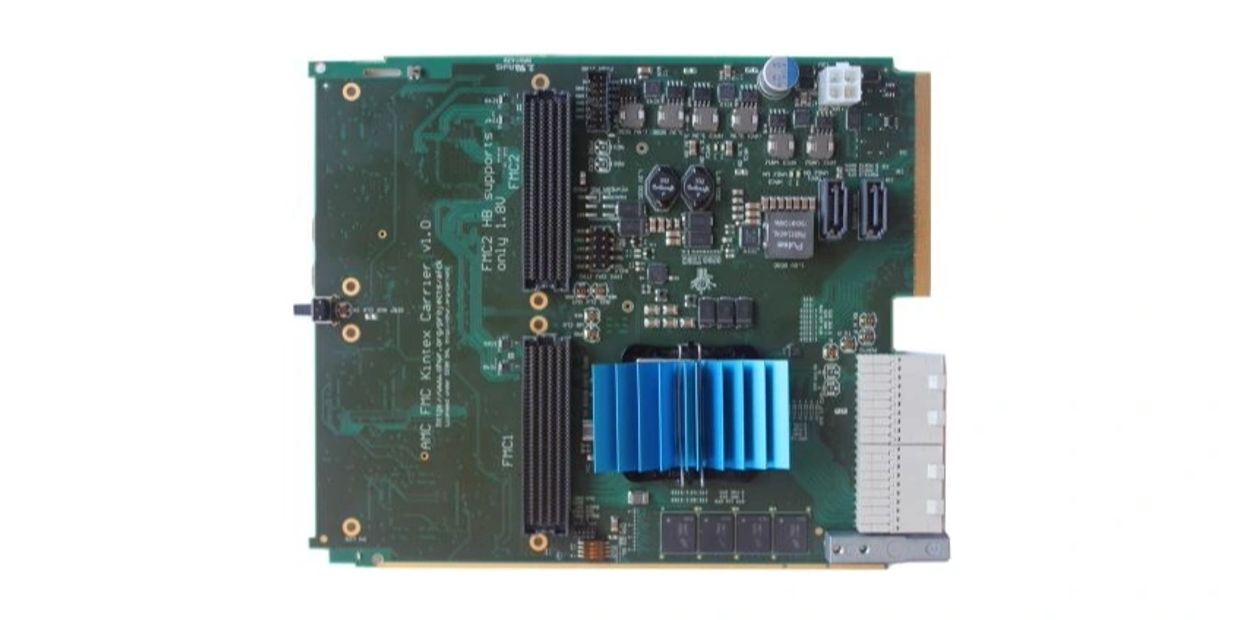

The AMC FMC Carrier Kintex (AFCKU) is a high-performance FMC carrier platform designed for advanced data processing and communication systems. Based on Xilinx Kintex UltraScale FPGA technology, it provides enhanced processing capability and high-speed performance for demanding applications.
The board features flexible clocking architecture and supports integration with multiple clock sources and FMC modules, making it suitable for scalable system designs in scientific, industrial, and embedded environments.

Main Features:

• Programmable resources:
  • Xilinx Kintrx Ultrascale  XCKU035 FPGA (XCKU035-1FFVA1156C)
  • MMC: LPC1768
• Memory:
  • 2 GB DDR3 SDRAM (32-bit interface), 400Mhz
  • SPI Flash for FPGA configuration
  • EEPROM with MAC and unique ID
• Connectivity:
  • 2 high pin count (HPC) slots for 2 single width mezzanines or 1 double width mezzanine
  • Micro-USB connected to IPMI and FPGA
  • MGT can be connected to FMC1, FMC2, Fat Pipe 1, Fat Pipe 2, Port0, Port1, Port2, Port3, RTM
  • RTM connector with 8 GTP routed to it. Compatible with RTM-4SFP-3QSFP module.
• Supply:
  • Power supply for FPGA, memory, FMCs - VADJ fixed to 1.8V
  • Voltage and current monitoring for all FMC power buses
• Other:
  • Clock distribution circuit compatible with White Rabbit and ARTIQ
  • Temperature monitoring: FMC1, FMC2, supply, FPGA core, DDR memory
  • JTAG access to FMC and RTM
