AMC FMC Carrier

Overview:

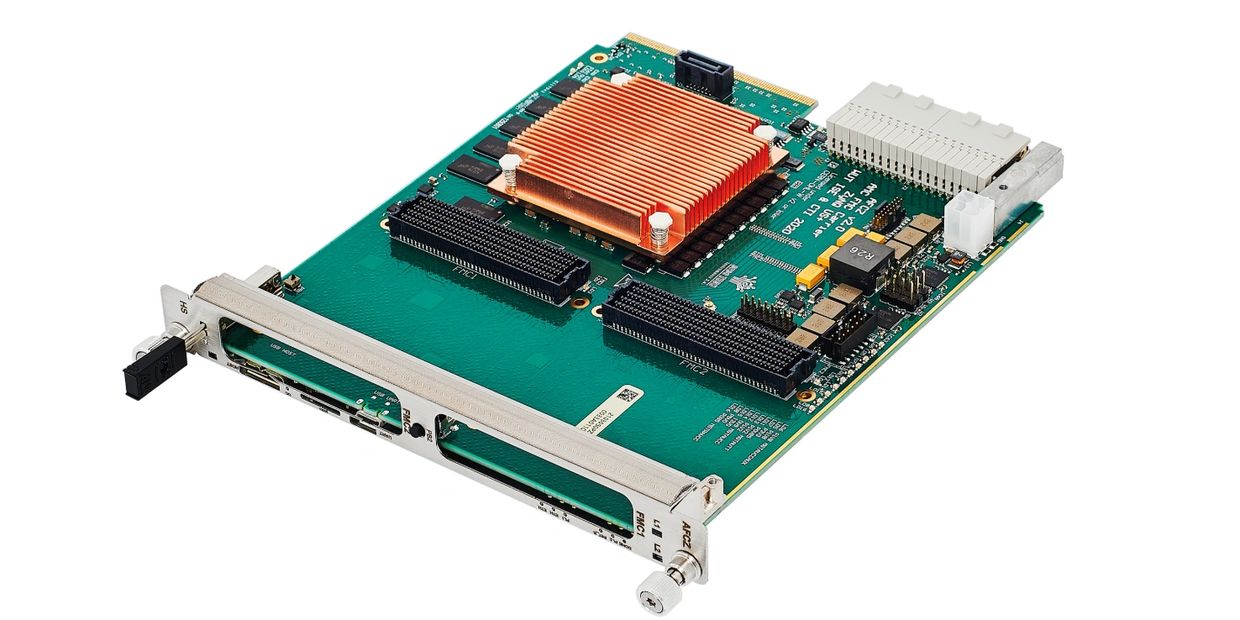

The AMC FMC Carrier (AFCZ) is a flexible, high-performance dual FMC carrier platform designed for advanced data processing and communication applications. Based on Xilinx Zynq UltraScale+ SoC technology, it enables integration of FMC modules for scalable system development.
The board supports configurable clocking, high-speed transceivers, and compatibility with White Rabbit and RTM modules, making it suitable for demanding scientific, industrial, and embedded system environments.

Main Features:

• XCZU7CG-1FFVF1517E or XCZU11EG-2FFV1517  device
• 3 DDR4 banks: 72bit(PS), 64bit(PL) and 16bit(PL)
• dual FLASH boot (main and spare)
• FLASH upgrade via MMC
• Open MMC support
• MMC access to the PORT0/PORT1 Ethernet via embeded L2 switch
• flexible low jitter clock crossbar
• dual FMC LPC with 8 GTH per mezzanine
• RTM connector with 16 GTH lanes
• USB3.0 routed to the panel
• SD CARD slot accessible from the front panel
• out of crate power supply and communication connector
• GTR routed to PORT2/3, internal SATA connector and USB3.0
• flexible power supply based on programmable Exar converters.
• embedded JTAG debugger, MMC update channel and dual console over single USB
• JTAG switch with AMC, USB, RTM and FMC support
